BLG-K10 1Ton Block Ice Making Machine Industrial Machine 10kg/20kg Per Piece For Ice Factory
BLG ICE1 Ton Block Ice Making Machine
Product Description:
High reliability ,Customized, 100% Ice Production, 16+ Years Lifespan, Exported to Many Countries.

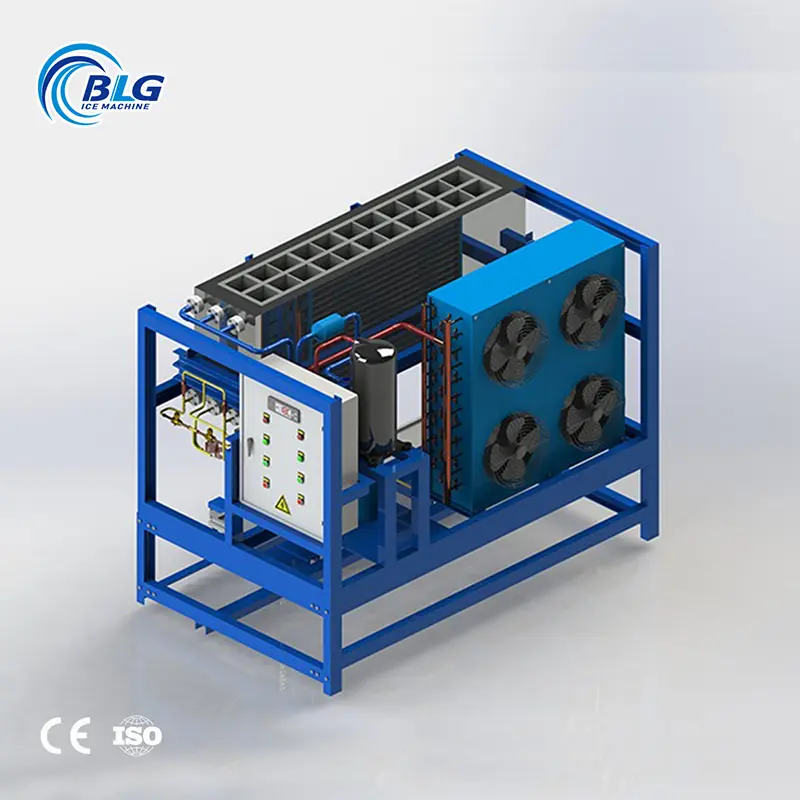

Introduction of Direct Cooling Block Ice Machine:
The Direct Cooling Block ice machine is a new type of high efficient Block ice machine，different from the traditional Brine cooling, the evaporator（Block ice moulds） is made of aluminum alloy, the refrigerant evaporates and exchanges heat directly in the evaporator to make ice without salt water,thus the machine has long life-span,never rust in the evaproator. The deicing is semi-automatically without any crane and manual harvest to give users most convenience.
We also provide containerized direct cooling block ice machines and brine block ice machines, and containerized brine block ice machines.
Technical Parameters:
Max. Ambient temp: +43℃, Relative humidity: 85%.
Supply water temp: 2~21℃, Power supply: 380V/3Phase/50Hz Optional.
Refrigerant: R22, R404A, R507A.
Ice removal method: Water/ Hot freon.
Cooling system: Air cooling condenser.
|
Model |
BLG-K10 (10kg size) |
BLG-K10 (20kg size) |
|
Ice making capacity |
1 ton/day |
1 ton/day |
|
Ice Size |
10kg (260mm*90mm*500mm) |
20kg (280mm*120mm*710mm) |
|
Ice block quantity |
15 Pcs each cycle |
18 Pcs. each cycle |
|
Time consumption for a single cycle |
~ about 3 hours |
~ about 6 hours |
|
Ice block output times |
7 times
|
3 times |
|
Actual output capacity |
10kg*15Pcs*7 times/day |
20kg*18Pcs*3 times/day |
|
Dimension |
2400mm×1200mm×1860mm |
3530mm×880mm×2100mm |
|
Equipment Weight |
800kg |
820kg |
|
Refrigerant |
R404a |
R404a |
|
Necessary cooling capacity |
8.91 kW |
22.6 kW |
|
Fan power(Air condenser) |
0.19 KW*2 Pcs. |
0.19 KW*4 Pcs. |
|
Total input power |
9 kW |
20 kW |
Customizable Design
The container-like shape and modular construction allow for easy installation and adaptability to different spaces.
Energy Efficiency
The high-quality polyurethane insulation ensures minimal energy consumption while maintaining consistent temperatures.
Durability
Built to withstand heavy usage and harsh environments, ensuring long-term reliability.
Versatility
Suitable for a wide range of products, from delicate flowers to frozen fish and fresh produce.
-
Complete machine delivery
The machine is packed and delivered as a whole, no additional installation is required. You only need to connect the water pipe and power supply, and you can start using it without debugging.
-
Full frame design
The full frame design prolongs the service life of the machine and reduces the risk of parts falling off due to shaking during operation. It is convenient for crane installation.
-
Food standard tube ice
Quickly produce edible tube ice with built-in filtration system.
-
Efficient Cooling
The exclusive design of SUB cooling sets the supercooling function at the ice outlet to make the tube ice fall off more smoothly.
